About Us
We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
Manufacturing Technique
| Rigid PCB Manufacturing Capability |
Volume Production |
Sample Processing |
| Layer count |
1-20L |
1-68L |
| Max thickness |
10mm (394mil) |
14mm (551mil) |
| Min line width/space |
Inner/Outer |
2.2mil / 2.5mil |
2.0mil / 2.2mil |
| Max copper |
6Oz |
30Oz |
| Holes size |
Mechanical/Laser |
≥0.15mm / 0.1mm |
≥0.1mm / 0.05mm |
| Aspect ratio |
20:1 / 25:1 |
28:1 / 35:1 |
| Material |
Megtron, Rogers, Arlon, Taconic, Polyimide, etc. |
| Surface finished |
HAL, ENIG, Immersion Tin/Silver, OSP, Hard Gold |
QUALITY ASSURANCE:
✓ Based on ISO 9001, ISO 14001, IATF16949, RoHS, REACH, UL, CQC management systems.
✓ Objective of ensuring 100% quality through full process control.
✓ Shipping criteria: Customer requirements and IPC standards.

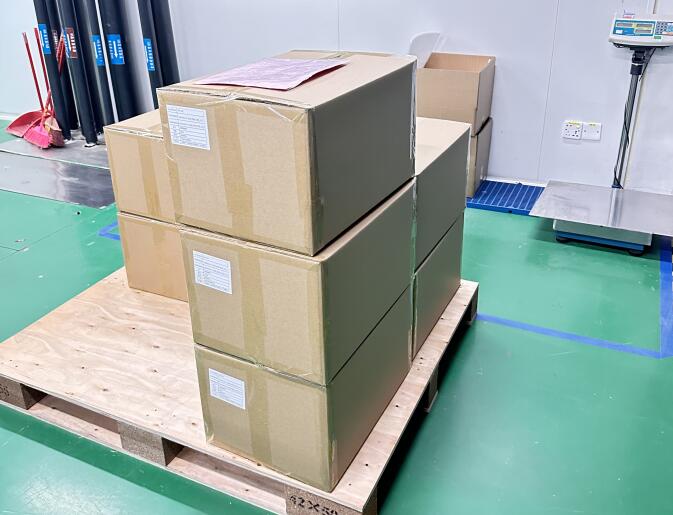

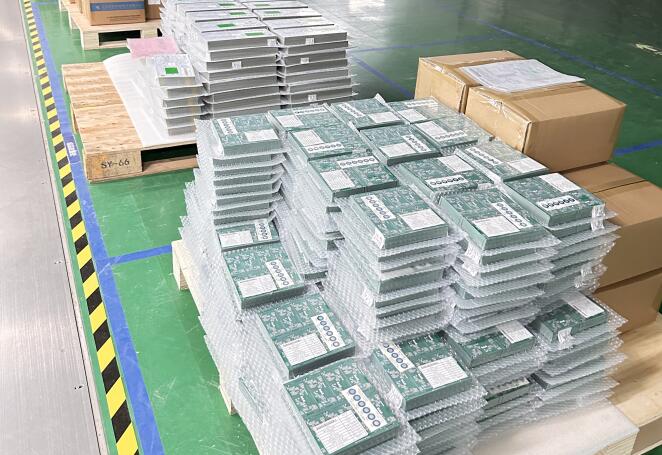

Packing & Shipping
Shipping Standards: Air ship (UPS, DHL, TNT, CTS, FEDEX), Railway ship, Seaborne, or Designated Methods.
| Layer |
Sample Shortest Lead Time |
Sample Standard Lead Time |
Mass Production Lead Time |
| 2 Layer | 24 h | 3 days | 6-7 days |
| 4 Layer | 36 h | 5 days | 8-10 days |
| 6 Layer | 48 h | 5 days | 8-12 days |
| 8 Layer | 72 h | 5 days | 9-12 days |
| 10-16 Layer | 4-5 days | 7-9 days | 14-18 days |
| 20+ Layer | Negotiated | Negotiated | Negotiated |
Frequently Asked Questions
Q1: What types of PCB materials do you support?
A1: We support a wide range of materials including high-speed (Megtron 6/7, IT872SLK), high-frequency (Rogers, Arlon, Taconic), and specialty materials like Polyimide, LCP, and BT resins.
Q2: What is your maximum layer count capability?
A2: We can process samples up to 68 layers and handle volume production for boards up to 20 layers and beyond.
Q3: Do you offer rapid prototyping services?
A3: Yes, we provide Quick Turn Around (QTA) services. For example, 2-layer boards can be finished in 24 hours and 4-layer boards in 36 hours.
Q4: What certifications do you hold for quality assurance?
A4: Our facilities are certified with ISO 9001:2015, ISO 14001:2015, IATF16949:2016, UL, CQC, and we comply with RoHS and REACH standards.
Q5: What are your shipping options?
A5: We offer air shipping via DHL, UPS, TNT, and FedEx, as well as railway and seaborne options. We can also accommodate customer-designated shipping methods.
Q6: What technical file formats do you accept?
A6: We accept standard industry formats including RS-274-X, RS-274-D, DXF, and files from Protel 99 SE, PADS, and DXP.
